TE800 OTDR for both SM & MM, Single-mode OTDR & Multi-mode OTDR, high quality, equal to EXFO OTDR

Features

Applicable fiber: Single mode & Multimode (MV10A)

Built-in Visible Fault Locator (VFL)

<2m extra-short event dead zon

Wavelength: 850/1300nm, 1310/1490/1550/1625nm±20nm

Up to 38/36dB High Dynamic Range

Distance Range: 4,8,16,32,64,128,256km

Pulse with: 10,30,80,160,320,640,1280,5120,1024ns

640×480, 6.5 inch TFT-LCD (touch screen)

USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync

Memory capacity >800 traces

Built-in lithium battery with high capacity for over 8 hours of operating life

Display: Color LCD

One year Warranty

Description:

With a short <2m dead zone the TE800 is designed for FTTx application. It can test the length, fiber loss connector loss and

other physical characteristics of fiber. it can locate events on fiber cables precisely. It is really the tool of choice for

FTTx application installation and maintenance as well as for fiber R&D and producing testing. TE800 rugged design, lightweight

and easy operation, as well as the low-reflection LCD and more than 10 hours battery life make it be perfect in filed testing.

Meanwhile, Its two USB & SD interfaces help to store and transfer traces easily and conveniently.

Order Information:

1. MV10A MM OTDR 850/1300nm 23/21dB

2. SV20A SM OTDR 1310/150nm, 32/30dB

3. SV30A OTDR 1310/1490/1550nm 32/30/28dB

4. SV20C SM OTDR 1310/150nm, 38/36dB

5. SS24AF PON:1310/1550/1625nm,32/30/28dB

6. SS24CF PON:1310/1550/1625nm,38/36/34dB

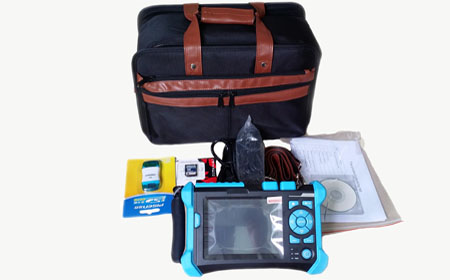

Standard Package:

•       TE800 OTDR

•       Testing Report

•       AC/DC adapter

•       Quality certification

•       Trace analyzing software(CD)

•       Internal Battery

•       User Manual

•       Carrying Case
