Description

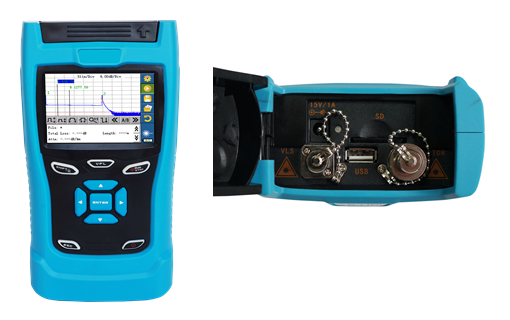

The optical time domain reflectometer (OTDR) TE300 is a high-performance and highly cost-effective optical network, ease of use, high intelligence, and one-click automatic rapid test. In addition, this instrument is small in size. It has powerful functions and can be powered by batteries. The operation interface is simple and friendly. The testing personnel can operate the OTDR by using the touch screen or keypad, adapting to the operation habits of different testing personnel.
Features
Touch screen+keypad, easy to operate Large-capacity polymer lithium battery supporting continuous
operation of more than 10 hours
Supporting data exchange between the SD card and USB flash drive
One-click red-light switch-on function
Solid shell design, dustproof and shockproof
Small, light, and portable
Specification
| Model | TE300 | |
| Dynamic (1) | 32/30dB | |
| Wavelength (±20 nm) | 1310/1550 | |
| Display | 3.5' TFT LCD touch screen | |
| Light source type | LD | |
| Optical interface | FC/UPC | |
| Distance range (km) | 0.3,1,3,5,10,30,60,120 | |
| Pulse width (ns) |
5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480,Auto |
|
| Measurement duration | 15s,30s,1min,2min,3min | |
| Attenuation dead zone (2) | 10m | |
| Event dead zone | 1.8m | |
| Distance measurement precision | ±(1 m + 5 x 10-5 x Distance + Sampling interval) | |
| Data storage | > 60000 test traces | |
| Communication interface | USB | |
| VFL | Wavelength | 650nm |
| Output power (dBm) | ≥ -3 | |
| Test distance (km) | 3 | |
| Optical Communications Test | YES | |
Standard Package
| Name | Quantity | Remarks |
| CD | 1 | Including PC software and user manual |
| Manufacturer's Certificate Warranty | 1 | |
| TE300 OTDR | 1 | |
| SD card | 1 | 2G |
| Power Adapter | 1 | 15V/1.0A |
| Carry Bag | 1 |
