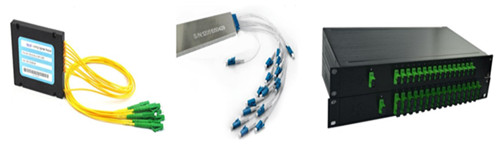

Steel Tube PLC Splitter, ABX Box and Rack PLC Splitter


Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. FCST provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements. PLC splitter is high quality passive device. It is especially for passive internet (EPON, BPON, GPON). And different package can follow client’s different inquiry. You can order such versions as 1:2, 1:3, 1:4, 1:8, 1:16, 1:32, 1:64, 1:128, or 2:2, 2:3, 2:4, 2:8, 2:16, 2:32, 2:64, 2:128.


Features:

·         Low Insertion loss

·         Low PDL

·         Compact Design

·         Good channel-to-channel uniformity

·         Wide Operating Wavelength: From 1260nm to 1650nm

·         Wide Operating Temperature: From -40°C to 85°C

·         High Reliability and Stability

·         PLC splitter: 1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64 types.

·         Bare PLC splitter, fan-out PLC splitter, module  PLC splitter, rack mount  PLC splitter, closure PLC splitter.

·         ISO 9001:2008,ISO14001:2004,ROHS


Applications:

·         FTTX Systems

·         PON Networks

·         CATV Links

·         Optical Signal Distribution

·         Telecommunication networks

·         Data transmission networks


Compliance:

·         Telcordia GR-1209-CORE-2001

·         Telcordia GR-1221-CORE-1999

·         RoHS


Specifications:

Parameters

1×2

2×2

1×4

2×4

1×8

2×8

1×16

2×16

1×32

2×32

1×64

2×64

Operating Wavelength(nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(P/S Grade)

3.8/
4.0

4.0/
4.2

7.1/
7.3

7.6/
7.6

10.2/
10.5

11.0/
11.2

13.5/
13.7

14.4/
14.6

16.5/
16.9

17.5/
17.9

20.5/
21.0

21.0/
21.5

Loss Uniformity (dB)

0.4

0.6

0.6

1.0

0.8

1.2

1.2

1.5

1.5

2.0

2.0

2.2

Return Loss (dB)
(P/S Grade)

55/50

Polarization Dependent Loss(dB)

0.2

0.2

0.2

0.2

0.2

0.3

0.25

0.3

0.3

0.4

0.35

0.4

Directivity(dB)

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.4

0.3

0.5

0.5

0.5

0.5

0.5

0.5

0.5

Temperature Stability
(-40~85°C)(dB)

0.4

0.4

0.4

0.4

0.4

0.4

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature(°C)

-40~85

Storage Temperature(°C)

-40~85

Device Dimension (mm)(L×W×H)

40×4×4

40×4×4

50×4×4

40×4×4

50×4×4

            50×7×4

60×7×4

60×12×4

Notes:

1) Specified without connectors.

2) Add an additional 0.15dB loss per connector.
