Description:

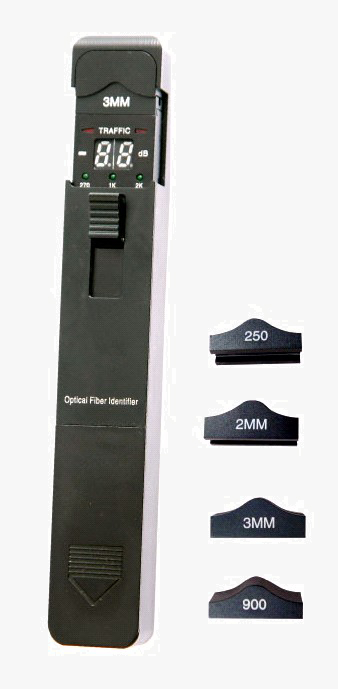

TE306 Optical Fiber Identifier is an essential instrument for the installation and maintenance of optical fiber projects. It can easily detect any spot of SM fiber cables.
Through inserting a 1310 or 1550 modulated signal into the fiber, it is used to indicate the direction of the transmitting signals, find and locate the specific fiber
without interrupting the normal work during the installation, cabling and maintenance
Features:
1. Compact size, universal connector and metal material
2. Efficient identification without interrupting the normal work.
3. H0.25 to test bare fibers, ￠0.9/￠2.0/￠3.0 pigtail
4. Display the direction and level of the transmitting signal
5. Beep prompt function
Application:
1. Telecom Projects
2. Optical Fiber CATV
3. Generic cabling system
4. Production and research of optical components
Specifications:
|
Model |
TE306 |
|
Identified Wavelength range(nm) |
800~1700nm |
|
Detector Type |
InGaAs 2pcs |
|
Identified Signal Type |
CW、270Hz、1kHz、2kHz |
|
LED |
Optical Power |
|
Detection sensitivity |
－40dBm |
|
Adapter Type |
￠0.25 to test bare fiber , ￠0.9 ribbon, ￠2.0/3.0 pigtail |
|
Insertion Loss |
￠0.25～￠ 0.9： 0.1dB |
|
￠2.0～￠2.5： 0.5dB |
|
|
￠2.5～￠3.0： 1.0 dB |
|
|
Signal Direction |
Left & Right LED |
|
Power Supply |
AAA 1.5V(2pcs batteries) |
|
Operating Temperature（℃） |
-10～50 |
|
Storage Temperature（℃） |
-20～70 |
|
Weight（g） |
210 |
|
Dimension (mm) |
200*30*27 |
