Description

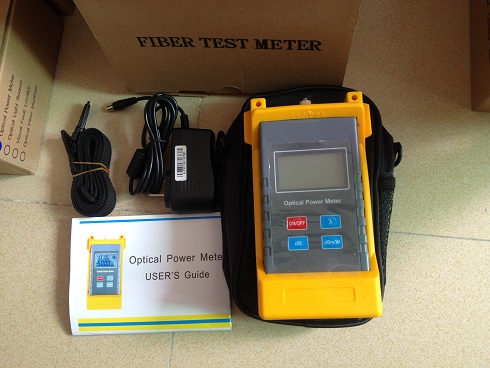

TE502 Handheld Optical Power Meter is a self-developed test instrument, with the current international advanced signal processing, microprocessor hardware and software
and micro-electronics technology to provide users with high-performance, high reliability, compact, easy to operate the equipment. It is Widely used in optical fiber communications, CATV, optical fiber sensing, optical information processing field, It is an important fiber optical testing instrument in scientific research and engineering.
Features
High sensitivity, wider dynamic range
universal connector interface FC/SC/ST
Quick response,
without warm-up and reduce testing time
Large LCD display and optional backlight
Application
Maintenance Telecom Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors
Specifications
|
Type
|
TE-502A
|
TE-502B
|
|
Wavelength（nm）
|
800～1650
|
|
|
Detector
|
InGaAs
|
|
|
Optical Connector
|
FC SC ST/ Universal2.5mm
adaptor (LC、MU can be optional） |
|
|
Measurement Range（dBm）
|
-70～+10
|
-50～+26
|
|
Uncertainty
|
±5%
|
|
|
Standard Wavelength（nm）
|
850、980、1310、1490、1550、1625
|
|
|
Resolution(dB)
|
0.01
|
|
|
Power Supply
|
1pcs Battery 9V
|
|
|
working time(h)
|
130 hours
|
|
|
Operating Temperature(℃)
|
-10～+50
|
|
|
Storage Temperature(℃)
|
-20～+70
|
|
|
Automatic shutdown（min）
|
10
|
|
