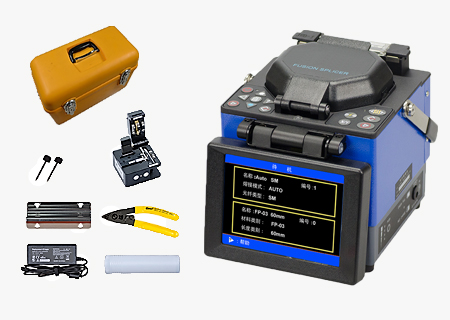

TE550G Digital Fiber Fusion Splicer with Blue or Green Color
Features:
Core to
core alignment by PAS technology
(PAS:Profile Alignment System)
Fiber core can be display clearly
Single X or Y view and X & Y
view simultaneously
Auto check quality of cleaved end face
5.7 inch TFT color LCD monitor with clear digital image display
USB & VGA interface
Software upgrade via USB interface
Specification:
|
Applicable fibers |
SM MM DS NZDS |
|
Fiber diameter |
Cladding diameter:80-150μm; Coating diameter:100-1000μm |
|
Fiber count |
Single |
|
Fiber cleaved length |
8-16mm (Coating diameter:250μm) |
|
Actual average splice loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
|
Typical splicing time |
Typical 9 sec (standard SM fiber) |
|
Return loss |
＞60dB |
|
Splicing mode |
Auto Calibrate Normal Special |
|
Fiber aligning method |
Meticulous、Core、Clad、Manual |
|
Splicing program |
53 (templet), 40(user) |
|
Tube heating program |
9 (templet),24(user) |
|
Tube typical heating time |
Typical 30 sec |
|
Protection sleeve length |
60mm, 40mm |
|
Storage of splice result |
4000 results, 20 parameter per result |
|
Fiber image magnification |
300X (X or Y view)，150X (X and Y view) |
|
Battery capacity |
Typical 150 cycles (splice/tube heat with inner Li-battery) |
|
Monitor |
5.7 inch TFT color LCD monitor |
|
Tension test |
2N |
|
Electrode life |
2500 |
|
Terminal |
USB and VGA |
|
Power supply |
AC 100-240V with AC adapter Inner Li-battery (7800mAH) |
|
Operating condition |
0-5000m above sea level, -10-50℃ Max wind velocity of 15m/s |
|
Dimension |
150mm(L)×150mm(W)×150mm(H) |
|
Weight |
2.7Kg excluding battery,3.3Kg including battery |
