Our fusion splicer systems inc.fusion splicer, fiber optic cleaver, electrode & cleaver blade. Also we are the agent of Fujikura, Sumitomo, EXFO products, and we have our own factory producing fiber testers.

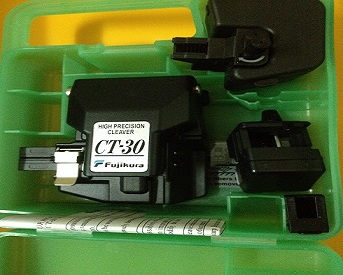

Fujikura CT-30 CLEAVER with a AD-30A adapter plate. This allows
user to cleave specificlengths. Picture above does not show the adapter plate
installed.
Features:
Compact body & light weight
Applicable up to 12-fiber cleaving
48,000 fibers blade life (3 height x 16 positions)
Fiber scrap collection-free
Both compact type and large capacity type of
Fiber scrap container available
Specification:
|
Applicable fibers |
Silica optical fiber |
|
Bare fiber diameter |
125um |
|
Cleaving angle |
0.5 degrees at single fiber |
|
Blade positions |
3 height and 16 roating positions |
|
Blade life |
48,000 fibers (1,000 fibers x 3 height x 16 positions) |
|
Dimensions |
102W x 82D x 46H (mm) with FC-02 and FDB-03 |
|
Weight |
210g with FC-02 and FDB-03 |
