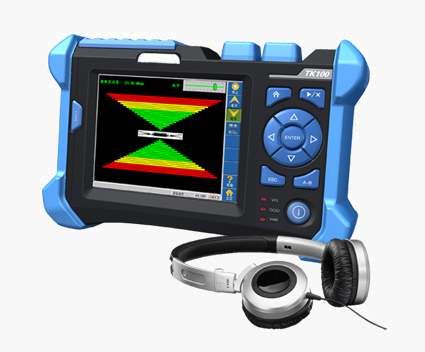

TE100 series Optical Cable Identifier with its strong application function greatly shortens the time of cable repairing and maintenance, decreases the costs of project construction and management, and greatly improves the work efficiency.
Features
1)It is small scale portable equipment with touching screen and buttons. It is easy to operate and learn.
2)It can orientate the target cable by loopback far-end knocking test with single fiber or single-double fiber.
3)Strong on-spot application capacity can meet the demands of accurately searching the target cable when looking over the directly-buried cable and pipe cables or cutting cables.
4)It can monitor the mechanical vibration conditions of the far-end cables.
5)It can orientate the target cable through audio or visible signal in a comprehensive environment.
6)It can optimize the equipment parameters automatically, and is suitable for testing lines with different length.
7)It has VFL visible failure location port, which helps accurately orientate the target cable.
Application
In the pipeline, channel, well and overhead environments, use single core optical fiber to accurately identify far-end cables;
Machine room construction, pipeline reform, cable cutting and connecting, regular management, resource survey and on-duty & maintenance of communication operators.
Specification
|
Model |
TE100-20/N |
TE100-40/N |
|
Measurement method |
Single fiber test |
|
|
Wavelength |
1550nm |
|
|
Min. output power of light source |
-15dBm |
-8dBm |
|
Loss of one way cable1 |
5dB |
10dB |
|
Measurement 21distance |
20Km |
40 Km |
|
Initial blind zone |
No blind zone |
|
|
Signal to noise ratio |
＞40dB |
|
|
Optical fiber interface |
SM |
|
|
Optical connector |
FC/APC |
|
|
Displaying screen |
5.6’ touch screen |
|
|
Input model |
Touch screen LCD + buttons |
|
|
Output model |
Visible: vibration amplitude(touch screen LCD), audio: sound (corresponding excitation intensity) |
|
|
Power supply |
DC12V/3A |
|
|
Battery |
Lithium battery (7.4V 10.4Ah), continuous work ≥14 hours |
|
|
Power |
≤6W |
|
|
Volume（H×W×L） |
65×150×235mm |
|
|
Weight |
1.5Kg (including battery) |
|
|
Working temperature |
0~45℃ |
|
|
Storing temperature |
-20~55℃ |
|
VFL visual failure location |
Wavelength: 650nm, output power (dBm): ≥-3, maximum testing distance: 5km |
|
Guarantee period |
12 months |
|
Remarks: 1. add reflector at the end (reflected value > -3dB) to increase 5dB. 2. add reflector at the end (reflected value > -3dB) to increase 20Km. |
|
