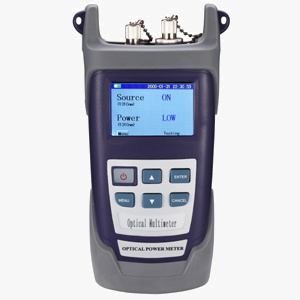

Features:
Includes
all the outstanding functions of handheld power meter(TE-501)
Includes all the outstanding functions of handheld stable light source(TE-201)
Switching
of the power meter function and that of the light source
by
menu operation
Different light sources and power meters can be built into TE-OM 207
Specification:
|
Model |
TE-OM207 |
|
|
A |
B |
C |
|
Power Meter + Laser Source |
Laser Source + Power Meter |
Light Source + Power Meter + Laser Source |
|
Power Meter |
||
|
Measuring Range(dBm) |
-70~+10/-50~+26 |
|
|
Detector type |
InGaAs |
|
|
Uncertainty (dB) |
+0.2(5%) |
|
|
Calibration wavelength nm |
850,980,1300,1310,1490,1550 |
|
|
Display precision (dB) |
0.01 |
|
|
Light Source |
||
|
Output wavelength (nm) |
1310/1550/650(other optionl) |
|
|
Measuring Range(dBm) |
-30dBm--23dBm |
|
|
Accuracy |
+10 nW(5%) |
|
|
SM Output Power(dBm) |
>= -2dBm |
|
|
MM Output Power(dBm) |
>= -20dBm |
|
|
Laser Source |
||
|
Output Power mw |
1,5,10,20,30(optionl) |
|
|
General Specification |
||
|
Communication |
RS232 |
|
|
Operating Temperature |
-10~+60 |
|
|
Storage Temperature |
-25~+70 |
|
|
Battery Operating Time |
>15h |
|
|
Display |
2.4TFT LCD |
|
|
Dimension (mm) |
190*100*48 |
|
|
Power Supply |
Li battery (9V) |
|
|
Weightg |
280 |
|
